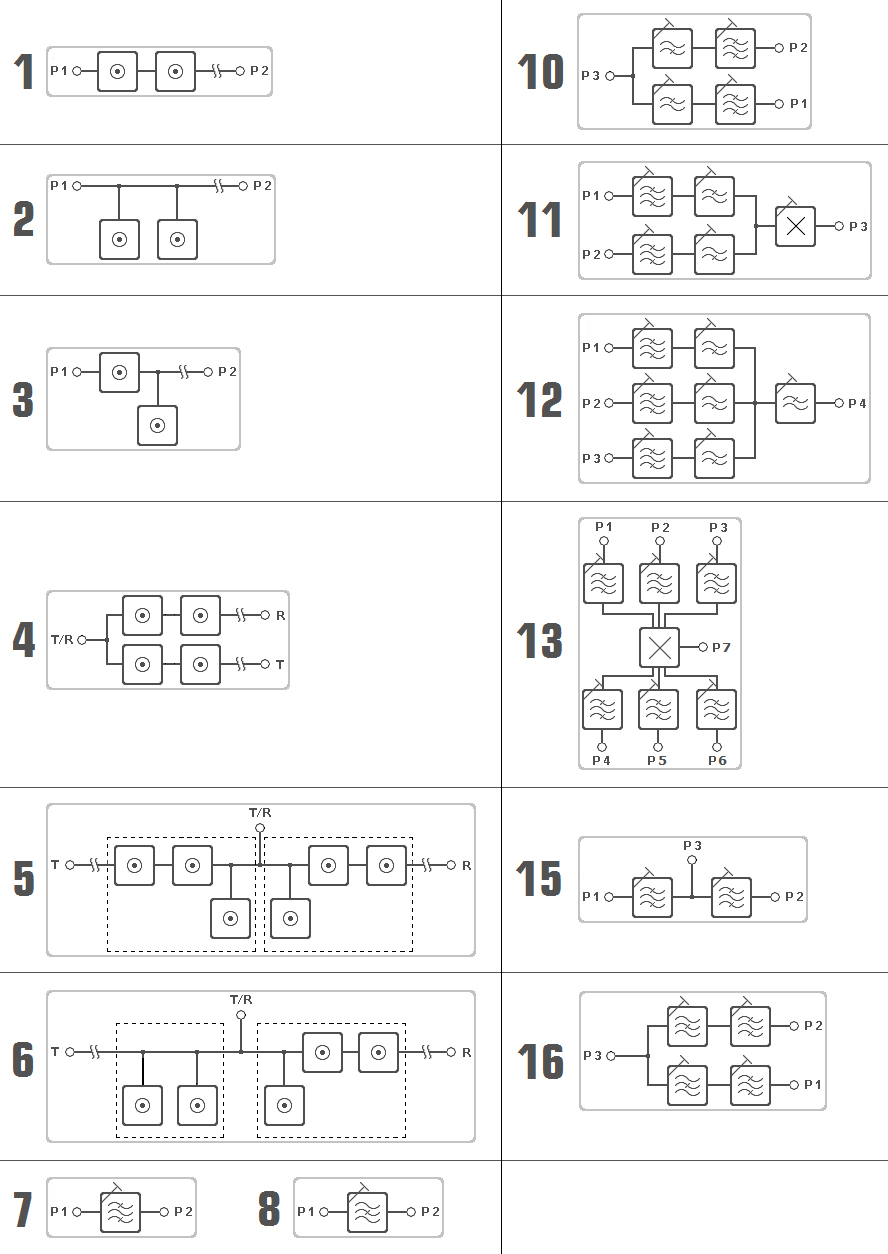

Model # Type Frequency  Range - MHz Application Technology Block   Diagram Package


Two-port Filter

SAR8041-x Band-pass 66-88 Security/FIRELINK Line-coupled cavity resonators 1 R1
SAR1741-x Band-pass 118-144 Air Traffic Control Line-coupled cavity resonators 1 R1
SAR1502-x Band-pass 136-179 DMR Line-coupled cavity resonators 1 R1
SAR2212-x Band-pass 225-400 Air Traffic Control Line-coupled cavity resonators 1 R1
SAR5841-x Band-pass 380-520 DMR/TETRA Line-coupled cavity resonators 1 R3
SAR8601-x Band-pass 760-870 DMR Line-coupled cavity resonators 1 R2
SAR9611-x Band-pass 806-960 TDMA/CDMA System Line-coupled cavity resonators 1 R2
SAR2045-x Band-pass 1710-1990 TDMA/CDMA System Line-coupled cavity resonators 1 R4
SAR1825-x Band-pass 1900-2170 TDMA/CDMA System Line-coupled cavity resonators 1 R2
SBR8041-x Band-reject 66-88 Security/FIRELINK Line-coupled cavity resonators 2 R1
SBR1741-x Band-reject 118-144 Air Traffic Control Line-coupled cavity resonators 2 R1
SBR1502-x Band-reject 136-179 DMR Line-coupled cavity resonators 2 R1
SBR2212-x Band-reject 225-400 Air Traffic Control Line-coupled cavity resonators 2 R1
SBR5841-x Band-reject 380-520 DMR/TETRA Line-coupled cavity resonators 2 R3
SBR8601-x Band-reject 760-870 DMR Line-coupled cavity resonators 2 R2
SBR9611-x Band-reject 806-960 TDMA/CDMA System Line-coupled cavity resonators 2 R2
SBR2045-x Band-reject 1710-1990 TDMA/CDMA System Line-coupled cavity resonators 2 R4
SBR1825-x Band-reject 1900-2170 TDMA/CDMA System Line-coupled cavity resonators 2 R2
SPR8041-PxRy Pass-reject 66-88 Security/FIRELINK Line-coupled cavity resonators 3 R1
SPR1741-PxRy Pass-reject 118-144 Air Traffic Control Line-coupled cavity resonators 3 R1
SPR1502-PxRy Pass-reject 136-179 DMR Line-coupled cavity resonators 3 R1
SPR2212-PxRy Pass-reject 225-400 Air Traffic Control Line-coupled cavity resonators 3 R1
SPR5841-PxRy Pass-reject 380-520 DMR/TETRA Line-coupled cavity resonators 3 R3
SPR8601-PxRy Pass-reject 760-870 DMR Line-coupled cavity resonators 3 R2
SPR9611-PxRy Pass-reject 806-960 TDMA/CDMA System Line-coupled cavity resonators 3 R2
SPR2045-PxRy Pass-reject 1710-1990 TDMA/CDMA System Line-coupled cavity resonators 3 R4
SPR1825-PxRy Pass-reject 1900-2170 TDMA/CDMA System Line-coupled cavity resonators 3 R2
SPF1750 Band-pass 118-144 VHF ATC In/Outdoor Capacitive coupling comblines resonators 7 C2
SPF1756PR Pass-reject 118-144 VHF ATC In/Outdoor Aperture-coupling cavity resonators 3 C4
SPF2150 Band-pass 136-179 DMR In/Outdoor Line-coupled helicoidal resonators 7 C5
SPF2150PR Pass-reject 136-179 DMR In/Outdoor Aperture-coupling cavity resonators 3 C4
SPF5850 Band-pass 380-520 DMR/TETRA In/Outdoor Capacitive coupling comblines resonators 7 C1
SPF5856PR Pass-reject 380-520 DMR/TETRA In/Outdoor Line-coupled helicoidal resonators 8 C5
SPF5847PR Pass-reject 400-470 UHF/TETRA Line-coupled helicoidal resonators 8 C6
SPF5847R Band-reject 400-470 UHF/TETRA Line-coupled helicoidal resonators 8 C6
SPF8100 Band-pass 760-870 DMR Line-coupled cavity resonators 7 C5
SPF8100PR Pass-reject 760-870 DMR Aperture-coupling cavity resonators 3 C4
SPF9607 Band-pass 806-960 GSM/GSM-R/CDMA In/Outdoor Capacitive coupling comblines resonators 7 C1
SPF9607PR Pass-reject 806-960 GSM/GSM-R/CDMA In/Outdoor Aperture-coupling cavity resonators 3 C4
SPF1828 Band-pass 1710-1990 GSM/PCS In/Outdoor Capacitive coupling comblines resonators 7 C3
SPF2047 Band-pass 1900-2170 UMTS In/Outdoor Capacitive coupling comblines resonators 7 C3
MLF70334WE Band-pass 698-960 LTE/GSM/GSM-R/DMR Line-coupled cavity resonators 7 C5
SWF7028-xx Band-pass 698-960 LTE/GSM/GSM-R/DMR Capacitive coupling comblines resonators 7 C3
SWF1940-xx Band-pass 1900-2200 UMTS/CDMA Capacitive coupling comblines resonators 7 C8
SWF2328-xx Band-pass 2300-2700 LTE Capacitive coupling comblines resonators 7 C8
SWF23295DL Band-pass 2300-2700 LTE Capacitive coupling comblines resonators 7 C7
SWF23295UL Band-pass 2300-2700 LTE Capacitive coupling comblines resonators 7 C7
SWF2587-xx Band-pass 2300-2700 LTE Capacitive coupling comblines resonators 7 C3

Duplexer Filter

QM9007DP-x Band-pass 806-960 Multiband TDMA/CDMA Line-coupled cavity resonators 4 R2
QM9007DR-PxRy Pass-reject 806-960 Multiband TDMA/CDMA Line-coupled cavity resonators 6 R2
QM1897DP-x Band-pass 1700-2000 Multiband TDMA/CDMA Line-coupled cavity resonators 4 R2
QM1897DR-PxRy Pass-reject 1700-2000 Multiband TDMA/CDMA Line-coupled cavity resonators 5 R2
QM2087DP-x Band-pass 1900-2200 Multiband TDMA/CDMA Line-coupled cavity resonators 4 R2
QM2087DR-PxRy Pass-reject 1900-2200 Multiband TDMA/CDMA Line-coupled cavity resonators 5 R2
SPD15057R Band-pass 136-179 DMR Capacitive coupling comblines resonators 15 X4
SPD40035R Band-pass 380-470 DMR/TETRA Aperture-coupling cavity resonators 10 X4
MRD4038E Pass-reject 380-470 DMR/TETRA Line-coupled cavity resonators 16 X3
MRD69038WE Pass-reject 698-960 GSM/LTE/DMR Line-coupled cavity resonators 16 X3
SDF79028E-XX Band-pass 698-960 GSM/LTE/DMR Aperture-coupling cavity resonators 10 C4
MD8095DL-H/2 Band-pass* 780-960 GSM Aperture-coupling cavity resonators 16 X2**
MD90145DW Band-pass* 780-960 GSM Aperture-coupling cavity resonators 10 X2**
MD9018DP-H/2 Band-pass 806-960 GSM Capacitive coupling comblines resonators 15 X2
MD9018DR-H/2 Band-pass* 806-960 GSM Capacitive coupling comblines resonators 15 X2**
MD1718DP-H/2 Band-pass 1700-2000 TDMA/CDMA Capacitive coupling comblines resonators 15 X1
MD1718DR-H/2 Pass-reject 1700-2000 TDMA/CDMA Aperture-coupling cavity resonators 16 X2**
MD2028DP-H/2 Band-pass 1900-2200 TDMA/CDMA Capacitive coupling comblines resonators 15 X1
MD2028DR-H/2 Pass-reject 1900-2200 TDMA/CDMA Aperture-coupling cavity resonators 16 X2**

Multiplexer Filter

2-channel high power VHF multiplexer for broadcast application
BBM17135V 174-230 350 VHF Balanced cavity resonatrors band-pass filters 14 CX1
2-channel high power UHF multiplexer for broadcast application
BBM47835U 470-862 350 UHF Balanced cavity resonatrors band-pass filters 14 CX1
Dual band multiplexer for TETRA/GSM system
MM34200X 380-470/806-960 25 TETRA/GSM Line-coupled dual pass-reject filters 12 MX1**
Dual wideband multiplexer with DC feedthrough for indoor/outdoor LTE-GSM-UMTS system
M79070DL-W 790-960/1700-2700 60 GSM/UMTS/LTE Aperture coupled notch/band-pass filters 11 MX1**
Dual band multiplexer with DC feedthrough for indoor/outdoor UMTS-LTE station
M79081LE/B 790-960/1700-2200 60 UMTS/LTE Aperture-coupled notch/band-pass filters 11 MX1**
Dual band multiplexer with DC feedthrough for indoor/outdoor GSM/LTE station
M79083LE/B 790-960 25 GSM/LTE Aperture-coupled pass-reject filters 10 MX1**
Dual band multiplexer for indoor/outdoor GSM station
M790186D 806-960/1710-1880 60 GSM Aperture-coupled notch/band-pass filters 11 MX1**
Dual wideband multiplexer for indoor/outdoor GSM-UMTS station
M790186D-W 806-960/1710-2170 60 GSM/UMTS Aperture-coupled notch/band-pass filters 11 MX1**
Dual band multiplexer with DC feedthrough for indoor/outdoor GSM station
M790186D/B 806-960/1710-1880 60 GSM Aperture-coupled notch/band-pass filters 11 MX1**
Dual wideband multiplexer with DC feedthrough for indoor/outdoor GSM-UMTS station
M790186D/B-W 806-960/1710-2170 60 GSM/UMTS Aperture-coupled notch/band-pass filters 11 MX1**
Dual band multiplexer with DC feedthrough for indoor/outdoor UMTS-LTE station
M79085LE/H 1700-2200/2300-2700 25 GSM/UMTS/LTE Aperture-coupled pass-reject filters 10 MX1**
Triple band multiplexer for indoor/outdoor GSM-UMTS stations
MM83358X 880-960/1710-1880/1920-2170 25 GSM/UMTS Line-coupled pass-reject filters 12 MX2
Triple band multiplexer with DC feedthrough for indoor/outdoor GSM-UMTS stations
MM83358X/B 880-960/1710-1880/1920-2170 25 GSM/UMTS Line-coupled pass-reject filters 12 MX2
6-channel UHF multiplexer for digital broadcasting system
BMR4906U 470-860 20 UHF Aperture-coupled band-pass filters 13 MX3

* Elliptization buit-in for higher outband frequencies attenuation
** Available in waterproof case
